Single Mode G652D Anti Rodent Outdoor Application GYTS Fiber Optic Cable For Duct
| Plaats van herkomst | Guangdong, China |
|---|---|
| Merknaam | KCO, Kocent Optec Limited |
| Certificering | ISO9001, RoHS |
| Modelnummer | KCO-GYXTW-xA1 |
| Min. bestelaantal | Onderhandeling |
| Prijs | negotiable |
| Verpakking Details | houten rol, houten pallet |
| Levertijd | 3 ~ 5 dagen na ontvangst van de betaling |
| Betalingscondities | Western Union,T/T,L/C |
| Levering vermogen | 10,000km/maand |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Materiaal | PE, LDPE, HDPE | Naam | glasvezelkabel voor buiten |
|---|---|---|---|
| Lengte | 2 km tot 3 km per rol | Kabeltype | Gyxtw |
| Vezel | Multimode OM2 50/125 | Kernen | 2 kernen tot 24 kernen |
| Kleur | Zwart | Diameter | 7,0 mm |
| Onderdeelnummer | GYXTW-xA1 | ||
| Markeren | single mode G652D fiber optic cable,anti rodent outdoor fiber optic cable,GYTS duct fiber optic cable |
||
Productomschrijving
Single Mode G652D Anti Rodent Outdoor Application GYTS Fiber Optic Cable For Duct
About GYTS Fiber Optic Cable
GYTS fiber optic cable is an armored outdoor cable designed for duct applications in telecommunications. This versatile cable is suitable for duct, aerial, and direct burial installations, providing reliable performance in various outdoor environments.
- Outdoor cable (GY) with stranded loose tubes (T) and corrugated steel tape armoring (S)
- Steel tape provides enhanced protection against mechanical stress, moisture, and rodents
- Metal strengthening member with loose tube stranded and filled construction
- Steel-polyethylene bonded sheath for outdoor communication applications
- Single-mode/multimode fibers positioned in water-blocking filled loose tubes
- Tubes and fillers stranded around strength member with PSP protection

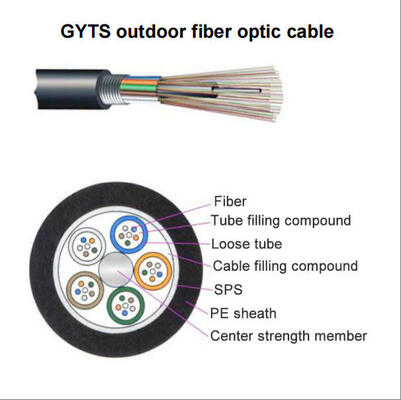

Cable Construction
Key Characteristics
• Excellent mechanical and temperature performance
• High strength loose tube with hydrolysis resistance
• Special tube filling compound for critical fiber protection
• Compact structure prevents loose tube shrinking
• PE sheath protects against ultraviolet radiation
• Watertight design with steel wire central strength member
• Loose tube filling compound for moisture protection
Compliance Standards
Complies with Standard YD/T 1155-2001 and IEC 60794-1 specifications.
Mechanical Characteristics
| Fiber Number | Loose Tube Dia. (mm) | Tube Number | Tube Fiber Number | Cable Dia. (mm) | Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 2～30 | 1.9 | 5 | 6 | 9.5 | 95 |
| 32～36 | 1.9 | 6 | 6 | 10.6 | 130 |
| 38～60 | 2.3 | 5 | 12 | 11.1 | 135 |
| 62～72 | 2.3 | 6 | 12 | 11.8 | 160 |
| 74～84 | 2.3 | 7 | 12 | 12.5 | 165 |
| 86～96 | 2.3 | 8 | 12 | 13.2 | 180 |
| 98～108 | 2.3 | 9 | 12 | 13.9 | 200 |
| 110～120 | 2.3 | 10 | 12 | 14.6 | 215 |
| 122～132 | 2.3 | 11 | 12 | 15.4 | 235 |
| 134～144 | 2.3 | 12 | 12 | 16.1 | 250 |
Fiber Characteristics
| Parameter | Unit | Value |
|---|---|---|
| Attenuation (850/1300nm) | dB/km | ≤3.0/1.0 |
| Dispersion (1550nm) | Ps/(nm*km) | Dispersion |
| Dispersion (1625nm) | Ps/(nm*km) | - |
| Bandwidth (850nm) | MHZ.KM | Bandwidth |
| Bandwidth (1300nm) | MHZ.KM | - |
| Zero dispersion wavelength | nm | ≥1295, ≤1320 |
| PMD Maximum Individual Fiber | - | ≤0.11 |
| Numerical Aperture (NA) | - | 0.200+/-0.015 |
Fiber Color Code
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Services
Custom branding available for cable, packaging bags, labels, and other components. Our OEM and ODM services can accommodate your specific branding requirements.
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Options:
- International express services (UPS, TNT, DHL, etc.)
- International air freight (CA, AA, EA, etc.)
- Sea freight
