127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding

  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
Plaats van herkomst CHINA
Merknaam KCO, Kocent Optec Limited
Certificering RoHS, ISO
Modelnummer KCO-JIG-FC-36
Document fiber optic polishing rubbe...ds.pdf
Min. bestelaantal Onderhandeling
Prijs negotiable
Verpakking Details papieren zak, kartonnen doos
Levertijd 2~5 dagen na krijg betaling
Betalingscondities T/T, Western Union, L/C
Levering vermogen 200.000 stuks/maand

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
P/n KCO-PAD-JP-70 Cijfer 0.3 dB, 3D
Polijstgebied Glasvezelconnector Schijfgrootte 127 mm
Aansluiting maximaal 48 aansluiting Machine Hoekdrukpolijstmachine
Markeren

127mm Fiber Optic Polishing Pad

,

0.3dB Grade Polishing Rubber Pad

,

3D Polishing Fiber Connector Polishing Pad
Laat een bericht achter
Productomschrijving

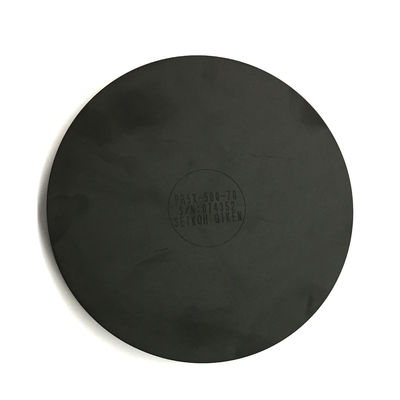

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm
Product Description

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm

  • Fiber Optic Polishing Rubber Pad is suitable for grinding optical fiber connectors, including ceramic ferrules, MTP, MPO and other non-standard connectors
  • Widely used in four-point pressure grinding machines and precision engineering SFP-550 series grinding machines
  • Available in multiple degrees (60°, 70°, 75°, 80°, 85°, 90°) for different polishing processes
Applications
  • Fiber optic connector polishing
  • Fiber optic patch cord production
  • Fiber optic pigtail production
  • Fiber optic splitter production
  • Fiber optic fast connector production
Related Machines
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 0 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 1 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 2 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 3
Specifications
  • Used in grinding spherical surfaces
  • Model: 500-50, 55, 60, 65, 70, 75, 80, 85, 90 (permanent stores)
  • External Dimension: 127*5mm
  • Material: Silica gel
Product Applications
Product Type Application
D
  • Lapping for Fiber optic connector, fiber array, glass pig tail (angle removal, rough grinding, medium polishing, fine finishing)
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal, LED
  • Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)
  • Edge polishing for silicon wafer
SC
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO The final super-precise polishing of optical fiber connector
Detailed Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size Disk: Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch)
Note: Other film sizes are available upon request.
Fiber Optic Patch Cord Production Process
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 4
OEM/ODM Service

We offer custom branding services for your products including cables, packaging bags, labels, and more. Contact our sales team for personalized support.

Packing & Shipping
Packing Options:
  • Standard Export Packing
  • Carton box
  • Wooden box
  • Wooden pallet
Shipping Methods:
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
Standard Export Ports:
  • Sea ports: Shenzhen, Hongkong, Ningbo
  • Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
