12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design

  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
Plaats van herkomst Guangdong, China
Merknaam KCO
Certificering RoHS, ISO9001
Modelnummer Kco-Dr.-1u-12-SCS
Min. bestelaantal Onderhandeling
Prijs negotiable
Verpakking Details De kartondoos, voert standaardpallet uit
Levertijd 2~7 dagen na krijg betaling
Betalingscondities Western Union, T/T, L/C
Levering vermogen 10,000pcs/month

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Aansluiting 1 SC Simplex Aansluiting 2 LC Duplex
Maat 485*300*1U Capaciteit 12 kernensc of 24 kernen LC
Kleur Zwart Hoog 1U / 44.5mm
Type Drawertype Standaard 19 inch
Logo print Aangepast OEM ODM -service Ja
Markeren

Optical Fiber Patch Panel 1U

,

Sliding Optical Fiber Patch Panel OEM
Laat een bericht achter
Productomschrijving

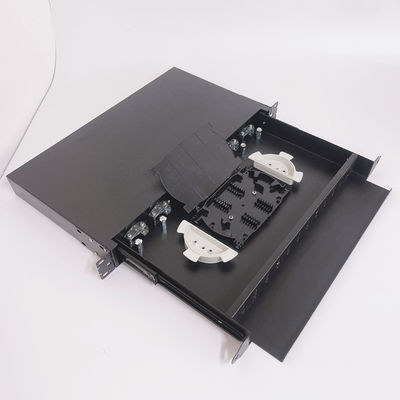

12 Ports Optical Fiber Patch Panel Drawer Sliding 1U Black Color Rack Mount
The 12 port rack mount optical fiber patch panel is a 19'' rack mounted fiber optic patch panel made of cold-roll steel with a plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. Features metal sliding fittings with self-locking functions to prevent the drawer from falling when moved.
Key Features
  • Compatible with all types of adapters (SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU)
  • Pre-loadable with required adapters and simple management kit
  • Two compartments: one for bulkhead receptacles/adapters, one for splice tray and excess fiber storage
  • Available in black, beige, or white color options
  • Standard 19'' rack mount compatible
  • Available in 1U to 4U height configurations
  • Material thickness options: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Applications
  • Passive Fiber Optic Networks (PON, GPON)
  • Telecommunication networks
  • FTTH, FTTB, FTTR, FTTO, FTTA
  • LAN, WAN, CATV networks
  • Active device termination
12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 0 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 1 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 2
Technical Specifications
Specification Details
Fiber Capacity of panel Max 48fo (LC Duplex adapter)
Panel Connector Port 12/24 ports
Type Drawer type
Dimension 485*300*1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6, 0.8, 1.0, 1.2, 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
Fiber type SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Weight 6.50kgs
P/N KCO-DR-1U-24-SCS

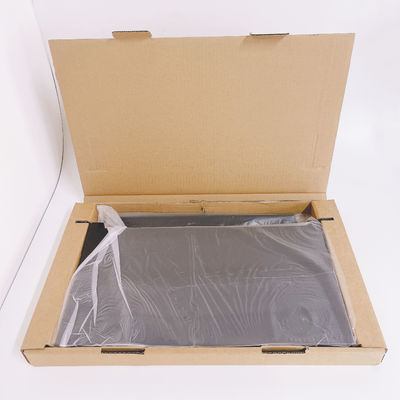

Packing Information
12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 3
  • 1pc/small carton box
  • 1U: 5pcs/big carton
  • 2U: 3pcs/carton
  • 4U: 2pcs/carton
Related Product Catalog
  • Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable
  • Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord
  • Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter
  • Fiber Optic Fast Connector: SC, FC, LC, ST
  • Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure
  • Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box
  • Fiber Optic Distribution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame
  • MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel
OEM/ODM Services
Custom branding available for goods including cable, packaging, labels, etc. Contact our sales team for support.
Shipping Options
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • By sea: Huyndai, COSCO
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
